In today’s digital era, USB-C™ has rapidly become the universal standard. Once burdened by multiple ports—USB-A, Micro-USB, HDMI—devices now share one sleek, reversible connector for data, power, and video. This article explores how USB-C™ surpasses older standards in design, speed, power delivery, compatibility, and future potential.
The Universal Serial Bus (USB) standard was first introduced in the mid-1990s to simplify how computers connect to external devices. Over time, multiple connector types emerged, each serving different form factors.
USB Type | Introduction Year | Typical Use | Notable Limitation |
USB-A | 1996 | Desktops, keyboards, printers | Bulky, non-reversible |
Micro-USB | 2007 | Smartphones, cameras | Fragile, one-direction plug |
USB-C™ | 2014 | Modern laptops, phones, accessories | None—universal design |
USB-A became the workhorse of early computing, used in almost every PC and peripheral.
Micro-USB arrived with smartphones and digital cameras, offering a smaller form factor but still suffering from durability and usability issues.
USB-C™, introduced by the USB Implementers Forum (USB-IF), merges compactness with power and versatility, capable of replacing all previous connector types.

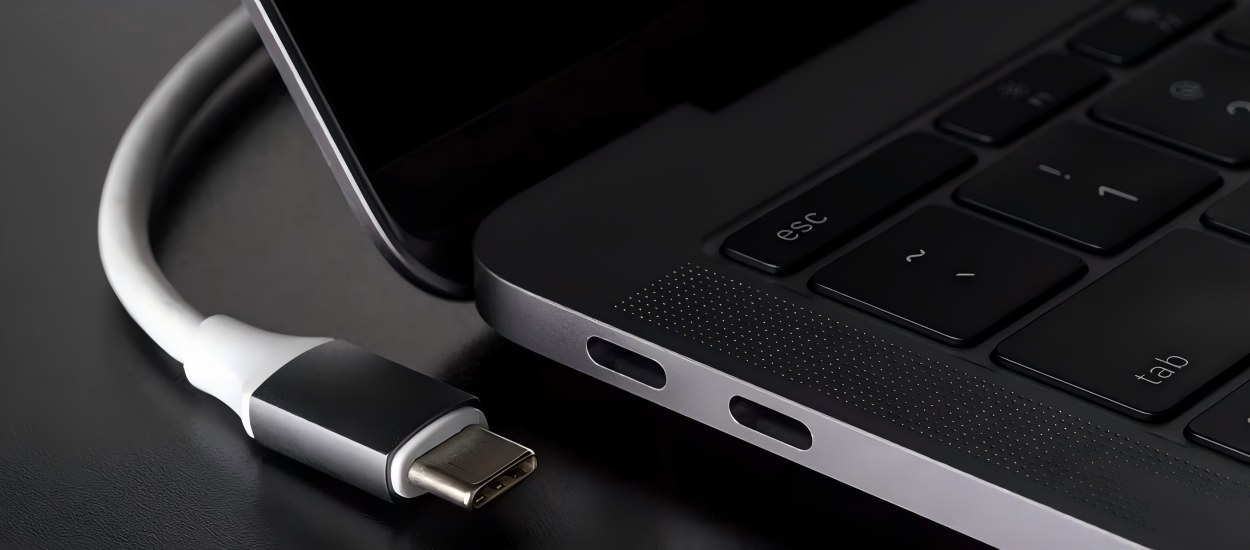

With its reversible, oval-shaped form, USB-CTM replaces the asymmetrical connectors of the past, removing the aggravation of plugging it in "the wrong way." It is smaller than USB-A but sturdier than Micro-USB, making it ideal for both slim smartphones and powerful laptops.
Feature | USB-A | Micro-USB | USB-C™ |
Shape | Rectangular | Trapezoidal | Symmetrical oval |
Orientation | One-way | One-way | Reversible |
Connector Size | 12 mm × 4.5 mm | 7 mm × 1.8 mm | 8.4 mm × 2.6 mm |
Durability (Insertion Cycles) | ~1,500 | ~10,000 | ~10,000+ |
Design Purpose | PCs & peripherals | Compact devices | Universal use |
The reversible connector is not only convenient but also ensures better wear distribution over time. USB-C™’s symmetrical 24-pin interface supports simultaneous data, power, and video transfer—something its predecessors were never designed to do.
One of USB-C™’s biggest advantages is its support for modern high-speed protocols. While older connectors were limited by their generation (for example, USB-A 2.0), USB-C™ acts as a multi-protocol interface, capable of carrying USB 2.0, USB 3.2, USB4, and even Thunderbolt 4 signals.
USB Version | Connector Type | Maximum Data Rate | Typical Applications |
USB 2.0 | USB-A / Micro-USB | 480 Mbps | Mice, keyboards, flash drives |
USB 3.0 / 3.1 Gen 1 | USB-A | 5 Gbps | External HDDs, cameras |
USB 3.2 Gen 2x2 | USB-C™ | 20 Gbps | SSDs, high-speed docks |
USB4 / Thunderbolt 4 | USB-C™ | Up to 40 Gbps | Displays, external GPUs, data hubs |
Older ports like Micro-USB were restricted to USB 2.0 speeds, which became a bottleneck for high-data applications. In contrast, USB-C™ supports simultaneous data and display transmission, enabling features such as 8K video output and ultra-fast external storage access.
The USB-C™ connector redefines charging performance with USB Power Delivery (USB-PD) technology. Unlike the fixed power limits of USB-A or Micro-USB, USB-C™ can negotiate power dynamically—providing exactly what a device needs.
Connector Type | Power Standard | Maximum Power | Typical Devices |
USB-A (2.0 / 3.0) | Standard 5V | 2.5W–12W | Mice, phones |
Micro-USB | Quick Charge 2.0 | 18W | Smartphones |
USB-C™ with PD 3.1 | Programmable Power Supply | Up to 240W | Laptops, monitors, docking stations |
This flexibility allows a single USB-C™ cable to charge a smartphone, power a monitor, or run a gaming laptop. Power Delivery’s bi-directional nature even means that devices like laptops can charge accessories or other devices, making it a cornerstone of modern “one-cable” ecosystems.
Perhaps the most revolutionary feature of USB-C™ is its ability to consolidate multiple interfaces into one port. Beyond data and power, it supports alternate modes—special protocols that use the same connector to transmit other signal types.
DisplayPort Alt Mode – Transmits 4K or 8K video directly to monitors.
HDMI Alt Mode – Connects directly to televisions and projectors.
Thunderbolt 3/4 – Combines ultra-high speed data (40 Gbps) with PCIe and display capabilities.
Ethernet over USB – Enables wired networking via adapters.
Such versatility has led to the minimalist port design trend seen in ultrabooks and tablets—where one or two USB-C™ ports replace an entire suite of connectors. Users can dock their device to a single USB-C™ hub for charging, data transfer, and dual-monitor display simultaneously.
Although USB-C™ represents a major technological leap, it was designed with backward compatibility in mind. Through adapters and cables, it can interface with legacy devices:
USB-C™ to USB-A adapters allow connection to traditional flash drives.
USB-C™ to HDMI or VGA dongles extend video compatibility.
USB-C™ to Lightning cables bridge ecosystems for Apple devices.
But not every USB-C™ cable is made equally. Some only support USB 2.0 data rates (480 Mbps) or low-power charging, while others handle full 40 Gbps and 240 W PD. Users should look for certified USB-IF logos or Thunderbolt markings to ensure quality and capability.
Beyond performance, USB-C™ brings notable sustainability benefits. A single universal connector standard reduces the need for multiple charger types—cutting down on e-waste and improving recyclability.
Mechanical resilience: rated for over 10,000 plug-unplug cycles, far exceeding USB-A.
Uniform ecosystem: compatible across phones, tablets, laptops, and peripherals.
Environmental policy impact: the European Union’s “Common Charger Directive” (2024) mandates USB-C™ as the standard charging port for electronic devices sold within the EU by 2025, a move expected to save hundreds of tons of electronic waste annually.
This regulatory shift is encouraging global manufacturers to standardize on USB-C™, reinforcing its status as the universal port of the future.
The USB-C™ standard continues to evolve rapidly. USB4 Version 2.0, released in 2022, doubles throughput to 80 Gbps, rivaling high-end data protocols used in professional workstations. Thunderbolt 5, announced in 2024, pushes this even further, supporting 120 Gbps bandwidth for multi-display 8K setups.
Beyond speed, USB-C™ is becoming the cornerstone of universal charging ecosystems, with major tech brands—from Apple to Dell—adopting it across product lines. Even emerging technologies like wireless VR headsets and industrial robotics rely on USB-C™ for fast, reliable data and power delivery.
Future devices are expected to integrate USB-C™ docking ecosystems, where one cable connects laptops to monitors, networks, and storage with seamless plug-and-play performance.
While wireless charging and data transfer continue to advance, USB-C™ remains unmatched for power density, stability, and speed—ensuring its relevance for many years ahead.
Feature | USB-A | Micro-USB | USB-C™ |
Orientation | One-way | One-way | Reversible |
Max Data Rate | 10 Gbps (USB 3.1) | 480 Mbps | 40 Gbps (USB4 / Thunderbolt 4) |
Max Power | 12 W | 18 W | 240 W (PD 3.1) |
Video Output | No | No | Yes (Alt Modes) |
Typical Use | PCs, Peripherals | Phones, Cameras | Laptops, Tablets, Accessories |
Device Type | Historical Port | Modern Port | Benefit of USB-C™ |
Smartphones | Micro-USB | USB-C™ | Faster charging & data |
Laptops | USB-A | USB-C™ / Thunderbolt | Single-cable docking |
External Drives | USB-A | USB-C™ | High-speed transfer |
Displays | HDMI | USB-C™ (DisplayPort Alt Mode) | Unified data + video |
Game Consoles | Proprietary | USB-C™ | Simplified accessories |
The move from USB-A and Micro-USB to USB-C™ marks a full evolution in device connectivity and power. With its reversible design, fast data transfer, and universal power delivery, USB-C™ unifies phones, laptops, and displays under one standard. As the world adopts it, users gain simpler, faster, and more sustainable connections—the era of one cable for all has arrived.
