The USB (Universal Serial Bus) cable has become indispensable in today's technologically advanced world for data transfer, gadget charging, and device connections. Choosing the best USB cable for your device might be difficult with the variety of models on the market. This in-depth guide examines the many kinds of USB cables, their applications, advantages, and compatibility to assist you in making well-informed judgments on your technological requirements.

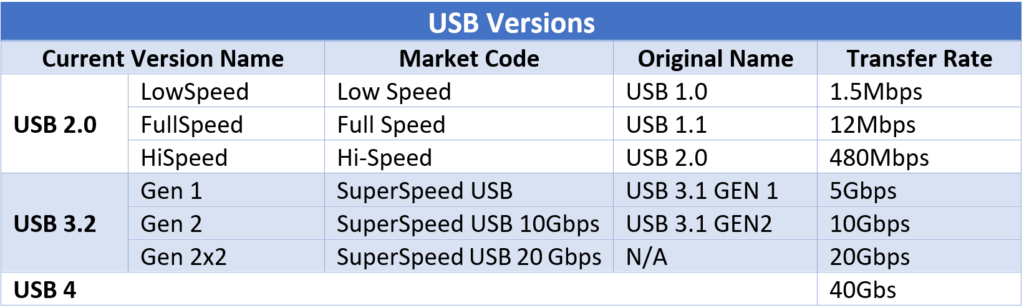

USB technology was introduced in 1996 as a standardized way to connect peripheral devices such as keyboards, mice, printers, and storage devices to computers. Over the years, the USB standard has evolved, offering higher data transfer speeds, improved power delivery, and greater compatibility with various devices. The most common versions of USB cables include USB 1.0, 2.0, 3.0, and the latest USB 4.0. These versions have introduced new types of connectors and expanded the capabilities of USB cables,
making them indispensable in modern technology.
USB 1.0 and 1.1: introduced in 1996, were the initial versions of USB technology, providing data transfer speeds up to 12 Mbps. USB 1.1 was slightly improved for better reliability.
USB 2.0: Launched in 2000, USB 2.0 brought faster data transfer speeds of up to 480 Mbps and introduced the concept of backward compatibility. Moreover, it enhanced the supply of electricity to charging devices.
USB 3.0 and 3.1: Introduced in 2008, USB 3.0 marked a significant leap with data transfer rates of up to 5 Gbps, while USB 3.1 increased the speed to 10 Gbps. Additionally, these models had higher power, which made them perfect for charging bigger gadgets.
USB 4.0: Compared to its predecessors, USB 4.0 has a maximum data transmission speed of 40 Gbps and was released in 2019. USB 4.0 also provides better power delivery, supports Thunderbolt 3 devices, and maintains backward compatibility with older versions.

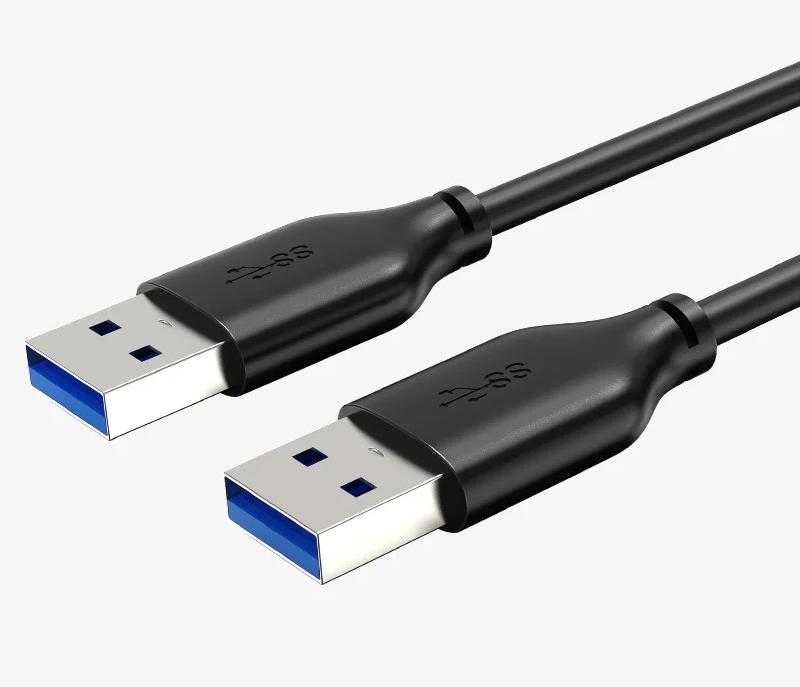

USB Type-A
USB Type-A is one of the most widely recognized USB connector types. It features a rectangular shape and is commonly used in computers, laptops, and peripherals like printers, external hard drives, and keyboards. USB-A connectors are typically compatible with USB 2.0, 3.0, and 3.1 standards. However, the connector itself remains the same across these versions, but the data transfer rates and power capabilities vary.
Common Uses: Connecting external devices (e.g., mice, keyboards, printers) to a computer.
Compatibility: USB 1.0 to 4.0.
USB Type-B
USB Type-B connectors have a square shape with a slightly beveled top, commonly found on printers and external hard drives. Although they are less frequent in consumer electronics, industrial applications still make extensive use of them. USB Type-B connectors can support USB 1.0 to 3.1 standards, depending on the device and cable specifications.
Common Uses: Printers, scanners, and large external hard drives.
Compatibility: USB 1.0 to 3.1.

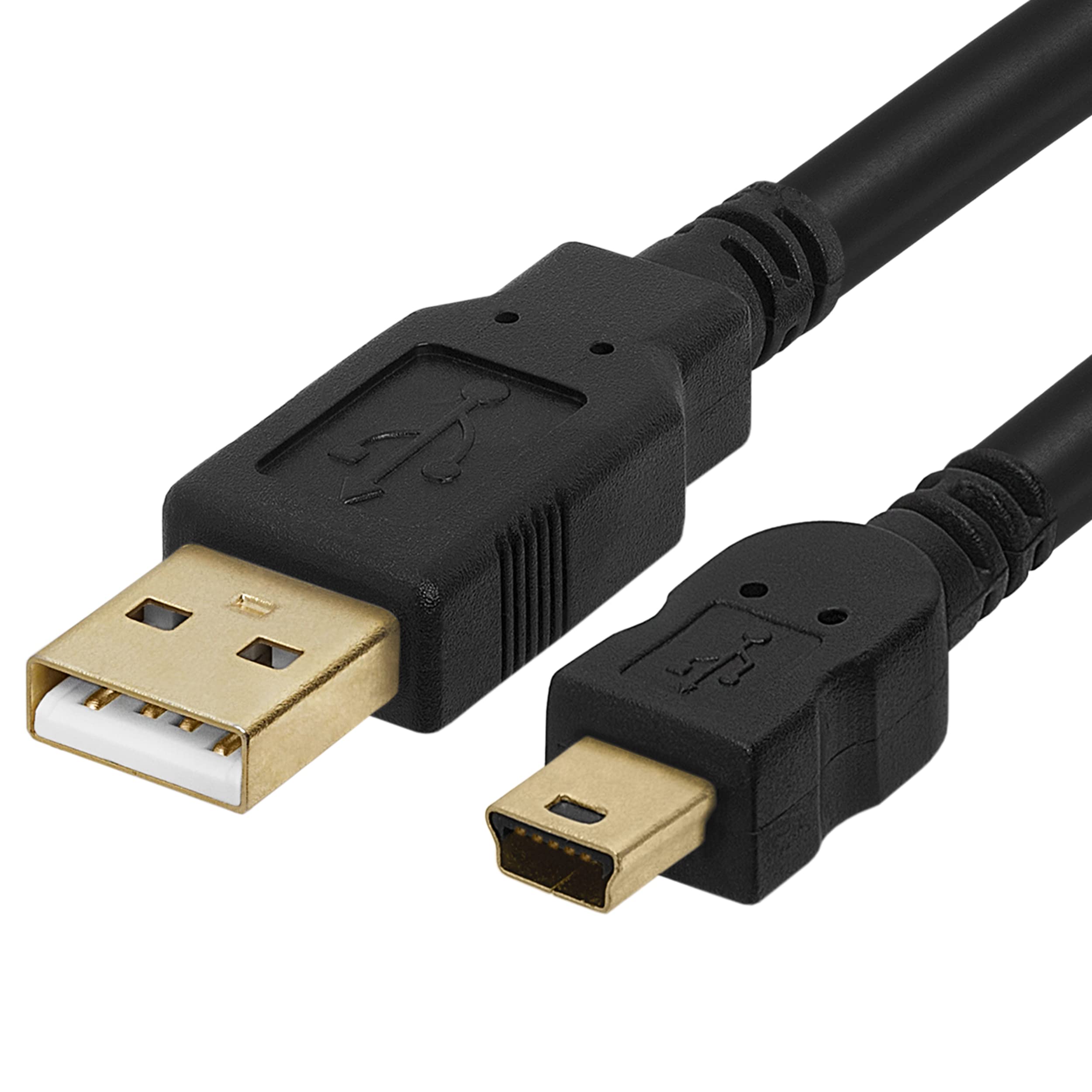

Mini-USB
In the past, older cellphones, MP3 players, and digital cameras all used mini-USB as a standard. Its smaller size allowed manufacturers to reduce the size of their devices without compromising on connectivity. But in recent years, USB-C and micro-USB have essentially taken its place.
Common Uses: Older cameras, MP3 players, and GPS devices.
Compatibility: USB 1.0 to 2.0.

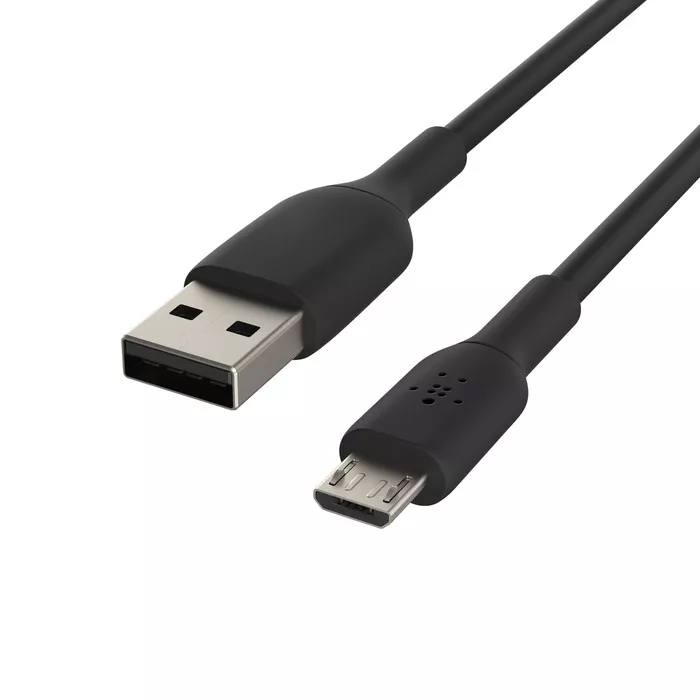

Micro-USB
Micro-USB is smaller than Mini-USB and became the industry standard for many smartphones, tablets, and other portable devices before the introduction of USB-C. There are two versions of Micro-USB: Micro-A and Micro-B, both of which offer the same functionality but differ in shape. Micro-USB supports data transfer speeds up to USB 2.0 and USB 3.0, with Micro-B connectors supporting the latter.
Common Uses: Smartphones, tablets, Bluetooth speakers, and game controllers.
Compatibility: USB 1.0 to 3.0.
USB Type-C
The newest USB connector standard, USB Type-C, is swiftly taking over as the standard connector for all contemporary gadgets. Unlike earlier USB versions that needed proper orientation, this one is reversible, meaning it may be inserted in either direction. USB-C is known for its high data transfer rates, improved power delivery (up to 100 watts), and compatibility with a wide range of devices. USB-C cables are typically backward compatible with older USB standards, depending on the device's capabilities. Additionally, USB-C is used in Thunderbolt 3 and Thunderbolt 4 connections, which offer even faster data transfer speeds.
Common Uses: Smartphones, laptops, tablets, monitors, external storage devices.
Compatibility: USB 3.1, USB 3.2, and USB 4.0.

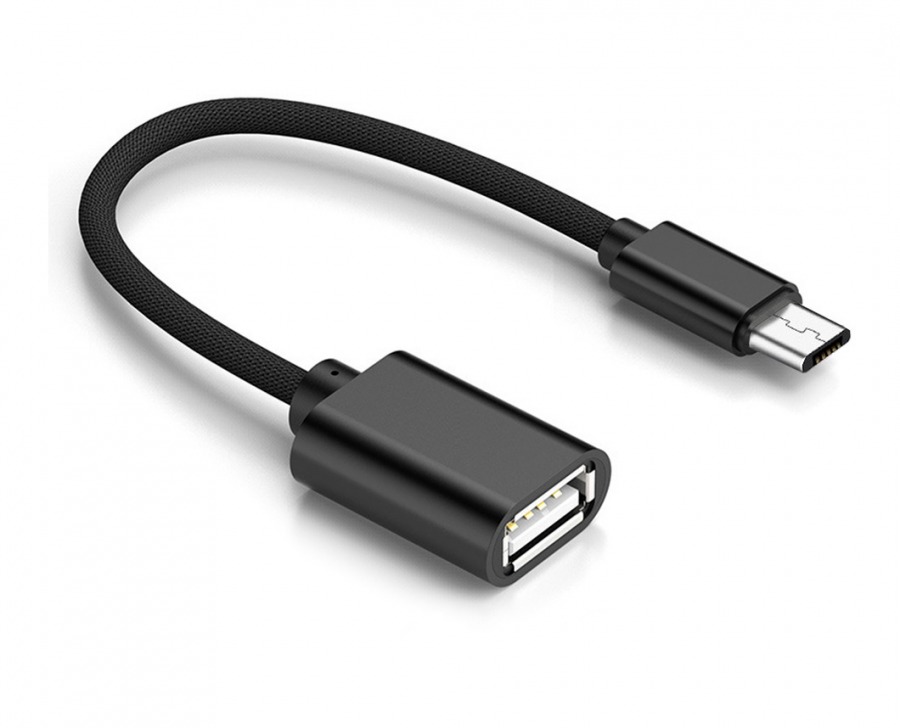

USB On-The-Go (OTG) enables devices like smartphones and tablets to function as hosts for USB devices like keyboards, mice, and flash drives. OTG is typically used with Micro-USB or USB-C connectors. With OTG, users can transfer files between devices, connect external storage devices, or control a device with peripherals.
Common Uses: File transfer between devices, connecting external peripherals to smartphones or tablets.
Compatibility: USB 2.0 and 3.0.
When selecting a USB cable, several factors should be considered, such as compatibility, data transfer rates, and power requirements. This little guide will assist you in selecting the ideal USB cable for your requirements:
Device Compatibility
Check the device’s specifications to ensure that the USB cable you select is compatible with the connector type (USB-A, USB-C, Micro-USB, etc.).
Some devices may require specific USB standards for optimal performance (e.g., USB 3.0 or higher for fast data transfer).
Data Transfer Speeds
If you require high-speed data transfer, opt for cables that support USB 3.0, 3.1, or 4.0 standards. These connections are great for massive file transfers and data backups since they provide quicker data transmission speeds.
Power Delivery
Choose a cable for charging gadgets that can handle the right kind of power delivery. Because USB-C connections can transmit up to 100 watts of electricity, they are a great choice for charging power-hungry devices like laptops.
Cable Length
Longer cables are more convenient, but they may result in slower data transfer rates and power delivery due to increased resistance. Choose a cable length that satisfies your needs without being too lengthy for best results.
Build Quality
Choose USB cables with reinforced connectors and durable materials to ensure longevity, especially for devices you frequently use. Generally speaking, braided cables and cables with gold-plated connections offer superior performance and longevity.
Reversible Connectors
USB-C is reversible, allowing for easier plug-in without worrying about the orientation.
Fast Charging Capabilities
USB-C and USB 3.0 cables typically support fast charging, making them ideal for devices with large batteries like laptops and tablets.
High Data Transfer Rates
Cables supporting USB 3.1 or USB 4.0 can transfer data at lightning-fast speeds, making them essential for professionals handling large amounts of data.
Backward Compatibility
Most USB cables are backward compatible with earlier USB standards, meaning a USB 3.0 cable can work with USB 2.0 devices, though at the slower 2.0 speeds.
USB4 is the latest development in USB technology, offering up to 40 Gbps transfer speeds, support for multiple data and display protocols, and improved power delivery. USB4 uses the USB-C connector and is backward compatible with USB 3.x and USB 2.0 devices. Thunderbolt 3 technology is also included into USB4, providing a single cable option for connecting many devices.
The future of USB technology is likely to bring even faster transfer speeds, better power efficiency, and broader compatibility with a wider range of devices. With USB-C becoming the universal standard, the days of juggling multiple types of cables are coming to an end.
Understanding the different types of USB cables, their uses, and compatibility is essential for staying up-to-date with the latest technology. Whether you're charging a device, transferring data, or connecting peripherals, selecting the right USB cable can make a significant difference in performance. With USB-C and USB4 leading the way, the future of USB technology promises faster data transfers, improved power delivery, and simplified connectivity.
