RJ45 vs RJ11: Understanding the Key Differences and Applications

Author: Site Editor     Publish Time: 2025-06-30      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

When it comes to networking and telecommunication systems, connectors play a crucial role in establishing reliable communication. Among the most commonly referenced connectors are RJ45 and RJ11. Despite their apparent similarities, they differ greatly in terms of their uses, designs, and functions. Understanding the distinctions between RJ45 and RJ11 is essential for IT professionals, technicians, and even consumers aiming to set up home networks or telephone systems.

What is RJ45?

RJ45, short for Registered Jack 45, is a standardized networking interface used for Ethernet and data communication. In both household and business contexts, it is most frequently found in network connections that link computers, switches, routers, and other network equipment.


Key Features of RJ45:


  • 8 positions, 8 contacts (8P8C): This means it has 8 wires inside the connector.

  • Used primarily for Ethernet networking (Cat5e, Cat6, Cat7 cables).

  • Supports high-speed data transmission, including Gigabit and 10-Gigabit Ethernet.

  • Commonly used in LAN (Local Area Network) environments.


RJ45 connectors are part of a broader category of Ethernet cables, often referred to as Cat5e, Cat6, or Cat6a, depending on their bandwidth and shielding specifications.

What is RJ11?

RJ11, or Registered Jack 11, is a connector used primarily in telephone systems. It's the traditional interface for connecting voice lines, DSL internet, or fax machines to a phone jack.


Key Features of RJ11:

6 positions, 2 or 4 contacts (6P2C or 6P4C): Usually only 2 or 4 wires are used for standard telephone communication.


  • Used mainly for analog voice transmission.

  • Can carry low-bandwidth data like DSL (Digital Subscriber Line).

  • Compatible with most landline phones, modems, and fax machines.


RJ11 is smaller than RJ45 and is not designed for high-speed data transmission, though it has served as a workhorse for telephone communication for decades.

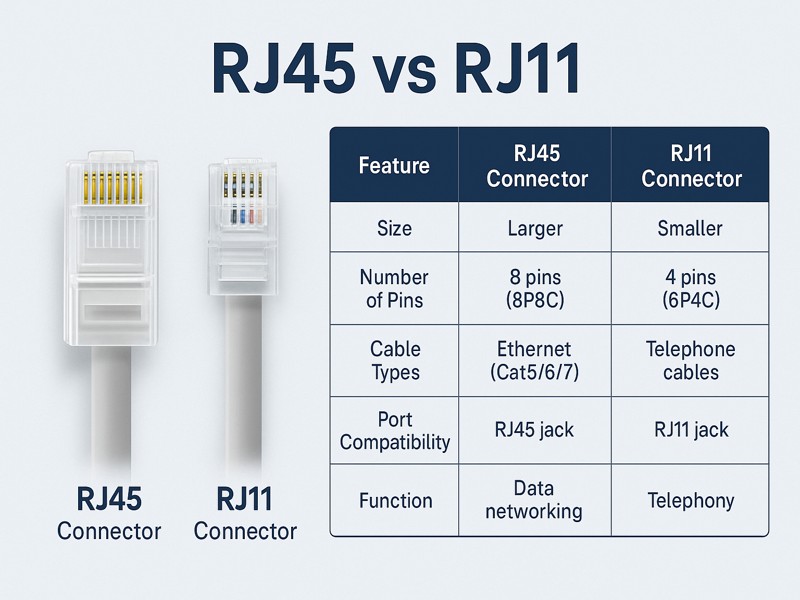

RJ45 vs RJ11 Comparison Resized


Physical and Structural Differences

Though RJ45 and RJ11 connectors look similar, there are key structural differences:


Feature

RJ45 Connector

RJ11 Connector

Size

Larger

Smaller

Number of Pins

8 pins (8P8C)

2 or 4 pins (6P2C or 6P4C)

Cable Type

Ethernet (Cat5/6/7)

Telephone cables

Port Compatibility

RJ45 jack

RJ11 jack

Insertion Compatibility

Cannot fit into RJ11 port

Can fit into RJ45 port (not recommended)


Trying to insert an RJ11 plug into an RJ45 port may seem to work physically, but it can damage the port or lead to connectivity issues.

Function and Purpose

RJ45 and RJ11 differ greatly in terms of what they are meant to connect.

RJ45:

  • Data-centric

  • Connects networking devices for Internet and LAN

  • Enables high-speed data transfers (up to 10 Gbps)

  • Used in computer networks, routers, switches, and network interface cards

RJ11:

  • Voice-centric

  • Connects landline phones, fax machines, and DSL modems

  • Used in home and office telephony setups

  • Suitable only for analog voice and low-bandwidth internet like DSL


The RJ45 is often referred to as the “network connector,” while RJ11 is commonly known as the “telephone connector.”

Electrical Specifications

From an electrical standpoint, the differences in wiring and signaling standards are substantial.


Specification

RJ45

RJ11

Bandwidth

Up to 10 Gbps (Cat6/6a)

Typically up to 128 Kbps (DSL)

Signal Type

Digital

Analog or DSL

Cable Twists

Twisted Pair

Flat or Twisted Pair

Impedance

100 ohms

Around 600 ohms


RJ45 connectors transmit digital signals over twisted pair cabling, using standards like T568A and T568B wiring configurations. RJ11, on the other hand, usually transmits analog voice signals or low-rate DSL data over fewer wires.

Common Use Cases

RJ45 Applications:

  • Home and business Ethernet networks

  • High-speed internet connections

  • IP cameras and VoIP phones

  • Network switches, hubs, and patch panels

  • Servers and data centers

RJ11 Applications:

  • Traditional telephone lines

  • DSL modems for internet access

  • Fax machines

  • Analog phone systems (PBX)

  • Older home intercom systems


Despite the increasing adoption of wireless technology, RJ45 remains essential for stable, wired internet connections, especially in enterprise environments. RJ11 continues to be used in areas where analog phones or DSL services are still prevalent.

Can RJ45 and RJ11 Be Interchanged?

While RJ11 and RJ45 cables may look like they could fit interchangeably, using them incorrectly can cause functional failures or hardware damage.


  • RJ11 plug in RJ45 jack: Physically possible, but may bend the RJ45 pins or short circuits can occur.

  • RJ45 plug in RJ11 jack: Will not fit due to size difference.


They are not interchangeable and should be used only with their corresponding jacks and ports.

Adapters and Converters

There are scenarios where RJ45 to RJ11 adapters or splitters are used. However, these adapters don’t magically convert network signals to phone signals or vice versa. They simply remap the pins for physical compatibility.


Examples:


  • DSL modem with an RJ11 output connecting to a wall jack using an RJ45 cable (adapter helps in this scenario).

  • Dual-port telephone jacks that use an RJ45-style port for multiple phone lines, split into RJ11 connections.


Caution: Always verify the application before using any converter. Mismatched voltage or signal types can damage equipment.

RJ45 and RJ11 in Modern Context

RJ45: Future-Proof and Evolving

As internet speeds increase and devices demand more bandwidth, RJ45 remains relevant thanks to advancements in Cat6a, Cat7, and even Cat8 cables. With speeds reaching 40 Gbps in some enterprise networks, RJ45 is essential for data-intensive tasks.

RJ11: Gradually Phasing Out

While RJ11 is still used in many households and offices, its relevance is declining due to the shift toward fiber optics, VoIP, and wireless communication. However, in areas with limited infrastructure, it still serves a critical role.

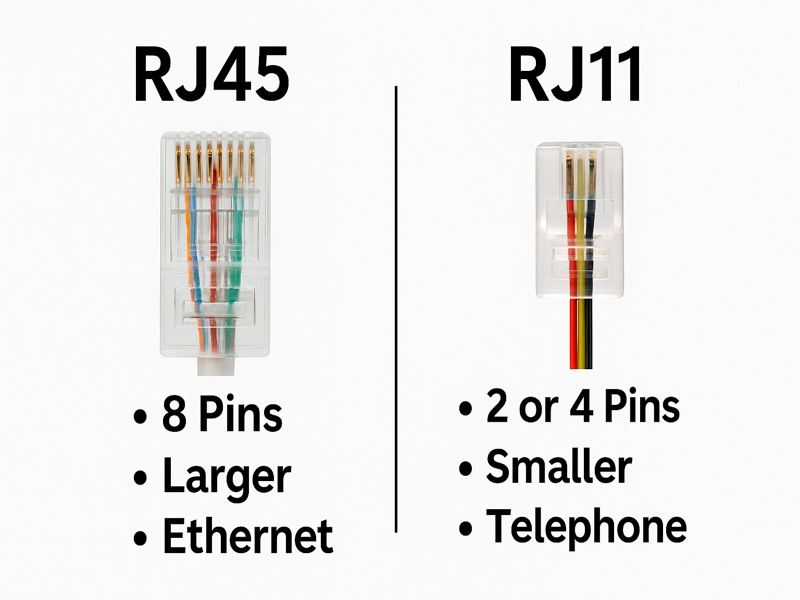

RJ45 VS RJ11 Connector-2

Summary: RJ45 vs RJ11 Comparison Table

Feature

RJ45

RJ11

Full Name

Registered Jack 45

Registered Jack 11

Number of Pins

8 (8P8C)

2 or 4 (6P2C or 6P4C)

Size

Larger

Smaller

Primary Use

Ethernet/data networking

Telephony/voice communication

Cable Types Supported

Cat5e, Cat6, Cat6a, Cat7

Flat wire, telephone cables

Signal Type

Digital

Analog or DSL

Speed/Bandwidth

Up to 10 Gbps+

Up to 128 Kbps (DSL)

Common Applications

Computers, routers, switches

Landline phones, DSL modems

Interchangeability

Not compatible with RJ11

Can fit in RJ45 (not recommended)


Which One Should You Use?

Choose RJ45 if:


  • You’re setting up an Ethernet network

  • You need high-speed data transfer

  • You’re wiring IP-based devices or internet connections


Choose RJ11 if:


  • You need to connect a landline phone or fax machine

  • You’re using a DSL internet service

  • You’re working with legacy phone systems


In most modern applications, especially those involving data transfer, RJ45 is the preferred choice. RJ11 remains relevant only in telephony and some DSL configurations.


Though they look similar, RJ45 and RJ11 serve distinct roles—RJ45 for high-speed networks, RJ11 for voice lines. Knowing their differences in structure, bandwidth, and use helps ensure proper cable selection and avoids costly mistakes in your setup.
