Antenna coaxial cables are indispensable in connecting antennas to devices such as televisions, radios, and satellite systems. Among the myriad of coaxial cable types, RG58, RG59, and RG6 stand out for their specific roles in different applications. Each has certain qualities that make it perfect for a particular purpose. In this article, we’ll dive deep into their features, differences, and applications, providing you with all the knowledge you need to choose the right cable.
A coaxial cable transmits high-frequency signals while minimizing interference and loss. Its design ensures signal integrity, making it essential for audio, video, and data transmission. Coaxial cables consist of four layers:
Inner Conductor: Transmits the electrical signal.
Dielectric Insulation: Prevents signal leakage and enhances signal strength.
Shielding: Protects the signal from electromagnetic interference (EMI).
Outer Jacket: Provides physical durability and protection.
Choosing the wrong type of coaxial cable can lead to degraded signal quality, higher loss, or even equipment incompatibility.

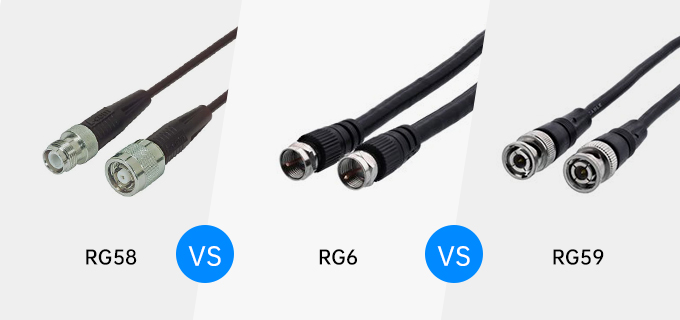

These cables are among the most commonly used types for antenna and signal transmission. Here’s an overview:
Specification | RG58 | RG59 | RG6 |
Impedance | 50 Ohms | 75 Ohms | 75 Ohms |
Diameter | ~0.195 in | ~0.242 in | ~0.275 in |
Frequency Range | Low | Medium | High |
Applications | Radio, CB, Short-range | CCTV, Baseband Video | HDTV, Satellite, Long-range |
Shielding | Single/Dual | Single/Dual | Quad/Dual |
Loss over Distance | High | Medium | Low |

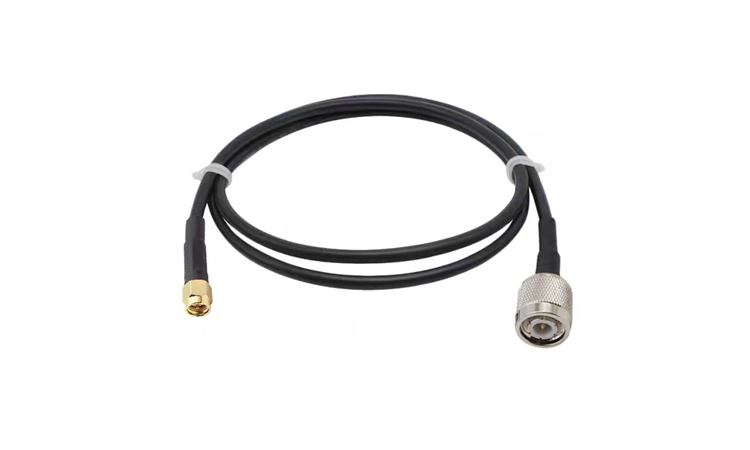

Design and Features:
Because of their 50-Ohm impedance, RG58 cables are appropriate for communication and radio frequency (RF) applications. Their small diameter (~0.195 inches) provides excellent flexibility, making them easy to install in confined spaces.
Applications:
Commonly used in CB radios, amateur radio setups, and RF communication systems.
Suitable for short-range and low-frequency signal transmission.
Advantages:
Compact and flexible for easy installation.
Affordable and widely available.
Limitations:
Higher signal loss over long distances.
Less effective for high-frequency applications.
Limited shielding makes it less resistant to EMI.

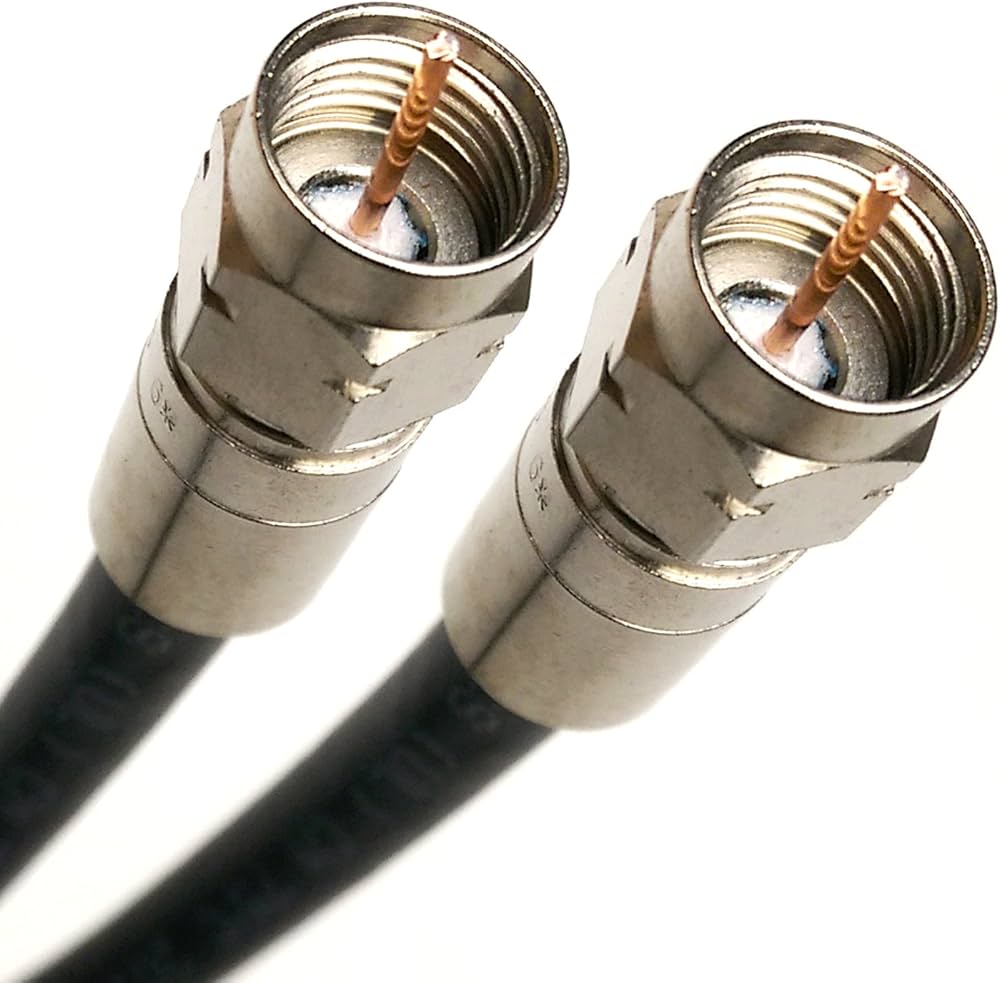

Design and Features:
RG59 cables are slightly thicker than RG58, with a 75-Ohm impedance optimized for video signal transmission. Because they work with legacy devices, they are frequently utilized in older analog systems.
Applications:
Ideal for CCTV systems, analog video, and low-bandwidth applications.
Common in baseband video and cable TV installations.
Advantages:
Affordable and sufficient for standard-definition video.
Moderate shielding provides reasonable EMI resistance.
Limitations:
Long-distance use is not recommended because to the increased signal attenuation compared to RG6.
Limited performance with modern, high-frequency applications like HDTV.
Because of its 50-Ohm impedance, RG58 is perfect for radio frequency and communication systems.
With their 75-Ohm impedance, RG59 and RG6 are appropriate for high-frequency and video applications.
RG58 experiences the highest signal loss over distance due to its smaller diameter.
RG59 offers moderate signal loss, acceptable for short to medium distances.
RG6 is designed to minimize signal attenuation, making it optimal for long-range use.
RG58 typically has minimal shielding, limiting its EMI protection.
RG59 and RG6 provide better shielding options, with RG6 offering quad shielding for maximum interference resistance.
RG58 is limited to low-frequency applications.
RG59 performs well in medium frequencies, suitable for standard video.
RG6 supports high frequencies, ideal for modern HDTV and satellite systems.
Since RG58 is the most adaptable, routing in tight areas is simple.
RG59 strikes a balance between flexibility and performance.
RG6 is thicker and stiffer, but its performance outweighs this limitation in most high-frequency applications.
Choose RG58 When:
Setting up amateur radios or CB radios.
Working with low-frequency RF signals.
Flexibility and compact cable size are critical.
Choose RG59 When:
Installing analog CCTV systems.
Transmitting baseband video signals.
Working within a limited budget for short-to-medium distance installations.
Choose RG6 When:
Setting up HDTV, satellite, or broadband internet systems.
Minimizing signal loss while operating long-distance cable installations.
EMI protection and high-frequency performance are essential.
Below is a chart comparing signal loss over a 100-foot length for each cable type:
Frequency (MHz) | RG58 (dB) | RG59 (dB) | RG6 (dB) |
50 MHz | 6.0 | 3.4 | 1.5 |
200 MHz | 16.0 | 8.0 | 4.0 |
500 MHz | 32.0 | 16.5 | 8.0 |
1000 MHz | N/A | 28.5 | 12.0 |
For short distances (under 50 feet), RG58 and RG59 are sufficient.
For long distances, RG6 is the clear winner due to its low attenuation.
RG6's robust shielding makes it more resistant to interference in urban or industrial settings.
RG58 and RG59 may suffice in less EMI-prone environments.
Ensure your chosen cable type matches the connectors of your devices (e.g., BNC, F-type).
RG58 is the most affordable option but may not meet the needs of high-performance systems.
RG59 offers a balance of cost and performance, suitable for many legacy systems.
RG6 is the most expensive but justifies the cost with its superior performance.
Your unique needs will determine which coaxial cable is best for your antenna installation. RG58 is suitable for short-range, low-frequency applications where flexibility is a priority. RG59 works well for legacy video systems, while RG6 is the go-to choice for modern, high-frequency systems like HDTV and broadband internet.
Your antenna arrangement will operate at its best and be the most economical if you are aware of the advantages and disadvantages of each cable type.
