Author: Site Editor Publish Time: 2025-08-27 Origin: Site
Digital Visual Interface (DVI) debuted in 1999 as a successor to analog VGA, using TMDS (Transition Minimized Differential Signaling) to send digital video signals. It still sees use in many older monitors, projectors, and graphics cards.
DVI D: exclusively transmits digital signals.
DVI I: transports analog (VGA compliant) and digital signals.
DVI A: exclusively in analog.
Single link DVI D supports resolutions up to ~1920×1200 @60 Hz, while dual link DVI D doubles the bandwidth for higher resolutions (~2560×1600).
Backward compatibility is a key feature: DVI I includes analogue VGA pins, and digital DVI shares the same TMDS format used in HDMI.

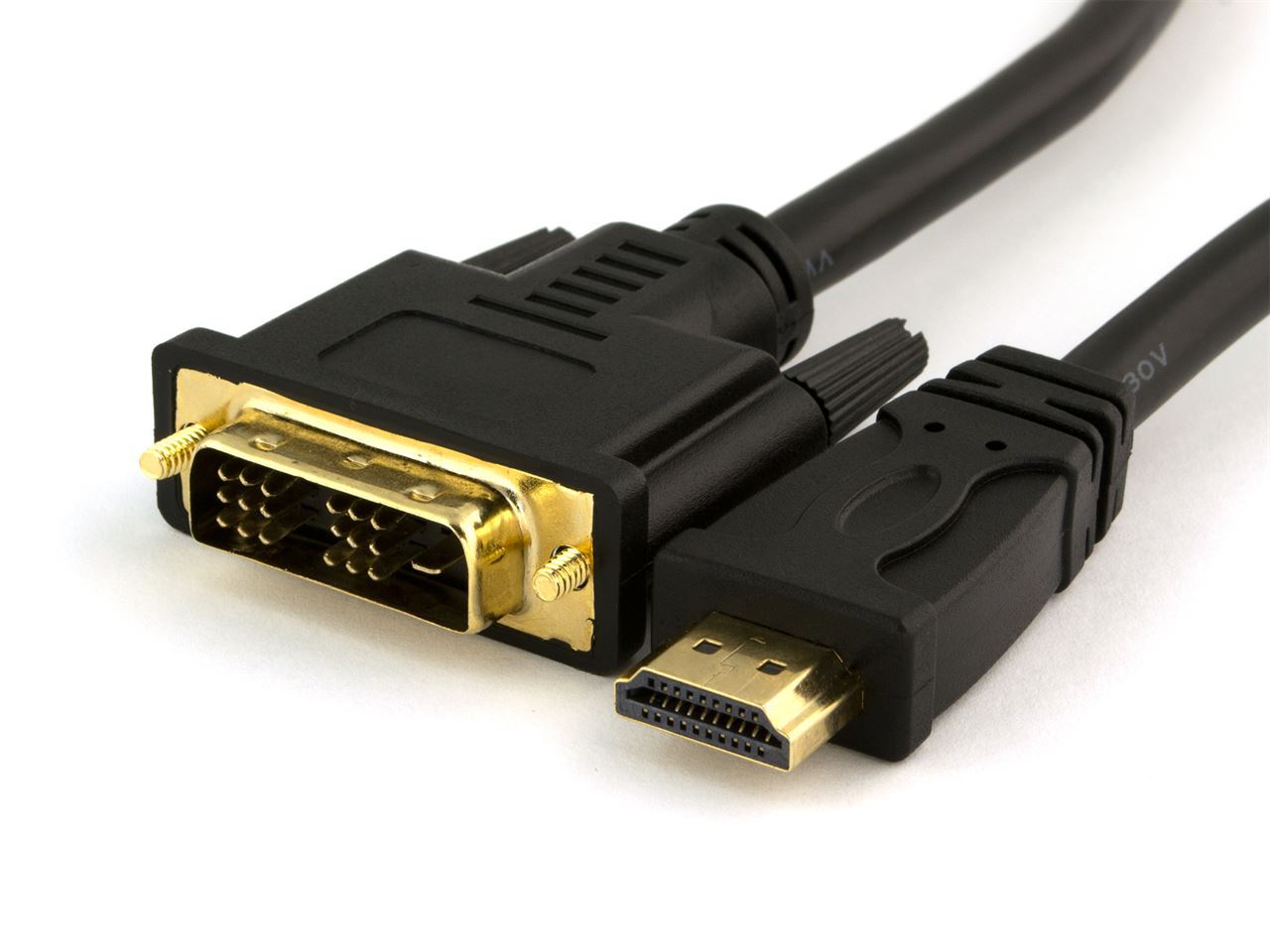

DVI and HDMI are electrically compatible when using digital video only. Because both share TMDS signaling, a simple passive adapter, cable, or DVI-to-HDMI (or HDMI-to-DVI) connector works without signal conversion or loss. That said:
DVI carries no audio, so HDMI audio isn’t passed through.
HDCP may block protected video content if the DVI device is not HDCP compliant.
Colour encoding differences (RGB vs. YCbCr) can occasionally cause issues—but this rarely affects practical use.
Bottom line: DVI ↔ HDMI is digital only and widely supported, with the limitation of audio and potential HDCP constraints.

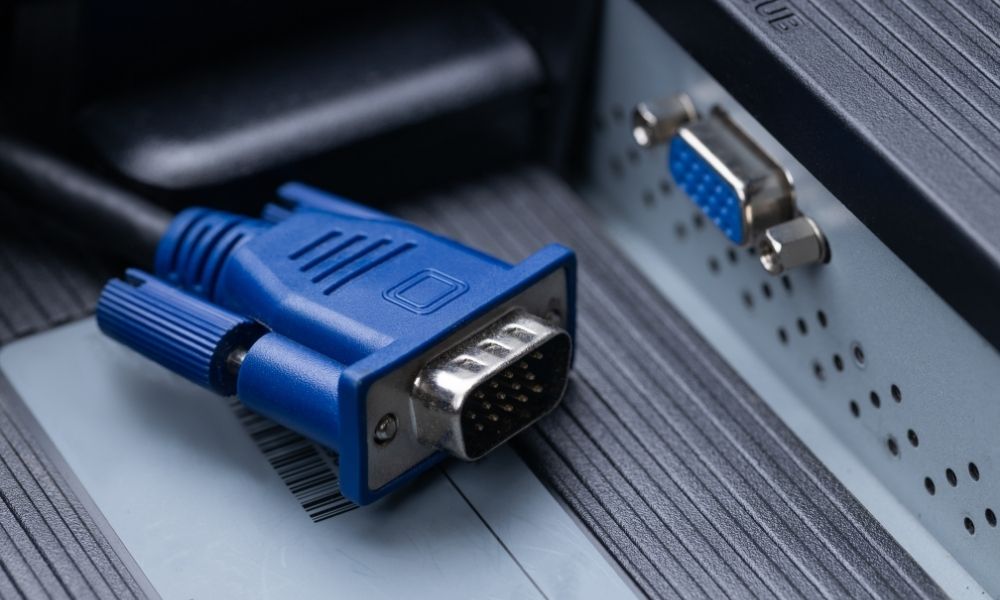

DVI I or DVI A includes analog VGA signals, which means you can pass VGA to/from DVI via a cheap passive adapter. This is why:
A DVI I output can drive a VGA display using a passive DVI I → VGA adapter.
A VGA output cannot feed a DVI I input unless the monitor accepts analog VGA signals.
Limits:
Resolution and refresh depend on quality: analog signals degrade, especially over long cable lengths (usually >15 m) or beyond about 2048×1536 @85 Hz.
Passive adapters only work if the DVI port carries analog pins; they don't work with DVI-D, which is digital only.
DisplayPort (DP) is a digital standard developed to replace VGA, DVI, and HDMI in PC space. With Dual Mode DisplayPort (DP++), most DP outputs can emit HDMI or DVI signals over a passive adapter:
A DP++ port detects a passive DVI or HDMI adapter and switches to TMDS mode.
Passive DP→HDMI or DP→DVI adapters work provided the GPU/laptop supports DP++ (most modern PCs do).
Limits:
TMDS clock limited to ~165 MHz (single link limits ~1920×1200 @60 Hz).
For higher resolutions (dual link DVI or high res HDMI), you’ll need an active converter box that translates DP signals into higher bandwidth TMDS or HDMI signals.
DP to VGA always requires an active converter, because no analog output is carried via DP.
Conversion Type | Adapter Type | Works with | Video Only? | Audio? | HDCP Support |
DVI D ↔ HDMI | Passive | Yes | Yes | No | Yes (if both sides support HDCP) |
DVI I → VGA | Passive | Yes | Yes (analog) | N/A | N/A |
DisplayPort → HDMI/DVI | Passive (DP++) | Yes (if DP++) | Yes | No | Limited (HDCP depends on GPU) |
DisplayPort → HDMI/DVI | Active converter | Yes (all DP) | Yes | Depends (some support audio) | Yes, can support HDCP |
DisplayPort → VGA | Active converter | Yes | Yes (analog) | No | N/A |
Passive adapters are preferred for basic DVI ↔ HDMI and DVI I ↔ VGA cases.
Active converters are required for DP → higher bandwidth HDMI (4K60), DP → VGA, or DP → dual link DVI.
A HDMI TV or monitor: use a DVI D to HDMI cable or adapter. No signal loss—but no audio, so you’ll need separate audio out.
A VGA monitor/projector: only works if your PC’s DVI port is DVI I (analog + digital)—use a DVI I to VGA adapter with a VGA cable.
A DisplayPort input: not directly possible; use DVI output and DisplayPort input: need a DVI → active DP converter (rare), or connect via HDMI if available.
A DVI monitor: If DP port supports DP++, use a passive DP→DVI adapter. That works if only single link DVI levels are needed. For higher resolutions, use an active DP→dual link DVI converter.
A HDMI display: Passive DP→HDMI adapter works if DP++ and single link HDMI resolution (1080p or 1440p). For 4K60 or audio support, use active DP→HDMI adapter.
A VGA display or projector: must use an active DP→VGA converter box—DP doesn’t carry analog signals; passive won’t work.
DVI I includes analog VGA pins, enabling backward analog support via passive adapter.
DVI D is digital only, so it works with HDMI via passive adapter—but not with VGA.
DVI and HDMI share TMDS, so digital signals are interoperable—DVI→HDMI is fully backward compatible for video.
DisplayPort with DP++ allows plug and play compatibility with DVI and HDMI via passive adapters.
Higher resolution output or analog conversion always needs active adapters or converters.
Check connector type on your device: DVI I (analog + digital) vs. DVI D.
Know your resolution/refresh needs:
For 1080p or below, single link passive adapters are fine.
For higher resolutions (1440p, 2560×1600, 4K), ensure dual link or active adapters.
Audio requirements:
No audio over DVI.
HDMI only passes audio from HDMI sources; DP→HDMI active adapters may support audio.
HDCP content: digital protected content may not work if either side lacks HDCP support.
Cable length/quality: for analog VGA, shorter and higher quality cables are better (≤4.5 m for up to 1920×1200; ≤15 m for lower resolutions).
No picture when using a passive DP→DVI adapter:
Your DP port may not support DP++. Consider getting an active adapter.
Display works but no audio:
Check whether your adapter supports audio (mostly active HDMI adapters); DVI never carries audio.
Content refuses to play (e.g. streaming service): likely HDCP handshake failure—make sure both source and display support HDCP.
Fuzzy image or artifacts: on analog VGA conversion, likely cable quality or length issue.
Resolution stuck low (1080p or below): possibly limited by single link adapter; dual link necessary for higher resolutions.
Older GPU with DVI I outputs to VGA projector → use passive DVI I → VGA adapter + VGA cable.
Laptop with HDMI output to DVI monitor → use HDMI → DVI D cable (digital only).
Modern PC with only DP outputs, connecting to a 1080p DVI monitor → use passive DP→DVI adapter.
Same PC connecting to a dual link DVI monitor at 2560×1600 → use active DP→dual link DVI adapter.
Connecting DP-only laptop to VGA-only projector → active DP→VGA converter box required.
DP output to HDMI TV (with sound) → use active DP→HDMI adapter with audio support if you need sound.
Even as DisplayPort, HDMI, and USB C rise in prominence, DVI still lingers in many legacy monitors, projectors, and corporate setups. Understanding how DVI works with VGA, HDMI, and DisplayPort lets you:
Connect older displays without replacing them.
Utilize adapters cost effectively (passive adapters are cheap, widely available).
Avoid unnecessary purchases—keeping older monitors functional.
Bridge new and old technology—especially useful in BYOD, education, corporate, and AV setups.
Always match adapter type to signal direction and port capability: passive versus active, digital versus analog.
Use passive adapters where possible, because they’re cheaper, simpler, and introduce no latency.
Invest in active adapters only when absolutely necessary (e.g. higher-than single-link resolutions, analog from DP).
Keep cable quality high especially when converting to VGA or dealing with longer distances.
Be aware of audio and HDCP limitations, especially with DVI and mixed adapters.
Document your device’s port types and capabilities before buying adapters—check whether DP supports DP++.
By knowing your connector types, signal capabilities, and adapter requirements, you can confidently connect PCs to monitors, TVs, and projectors—even across generations of video technology.
